The Geometry of Equality: The History and Evolution of Barcelona’s Iconic Grid System

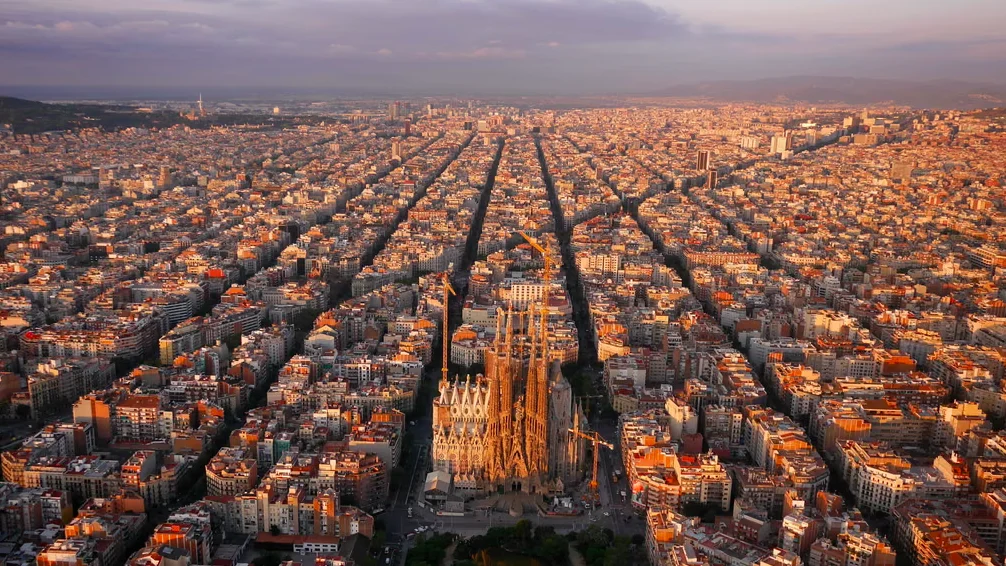

When viewed from a satellite or a high-altitude drone, the city of Barcelona presents one of the most striking visual spectacles in the world. Unlike the chaotic, radial tangles typical of ancient European capitals, the heart of the Catalan metropolis—the Eixample district—resembles a perfectly etched circuit board or a vast, repetitive mosaic of octagonal blocks. This rigid geometric precision is not merely an aesthetic choice; it is the result of a revolutionary 19th-century urban experiment designed to solve a public health crisis and manifest a utopian vision of social equality.

The story of Barcelona’s "blocks" is a narrative of transformation, led by the visionary engineer Ildefons Cerdà. It is a tale that bridges the gap between the suffocating conditions of the Industrial Revolution and the birth of modern urban planning.

I. Main Facts: The Anatomy of the Eixample

The district known as the Eixample (Catalan for "Extension") is characterized by its strict grid pattern, consisting of parallel and perpendicular streets that create uniform blocks. However, a closer inspection reveals that these are not simple squares.

The Octagonal Block (The Xamfrans)

The most defining feature of Barcelona’s layout is the "chamfered" corner. Each square block has its corners cut off at a 45-degree angle, turning the blocks into octagons. Known as xamfrans, these angled corners were designed by Ildefons Cerdà to facilitate visibility and provide ample space for the turning of steam-powered trams—a futuristic consideration for the mid-1800s. Today, these spaces serve as loading zones, terrace seating for cafes, and wider sidewalks for pedestrians.

Uniformity and Sunlight

Cerdà’s plan was built on the principle of egalitarianism. He believed that every citizen, regardless of wealth, deserved access to sunlight, fresh air, and green space. The streets were designed to be 20 meters wide—an extraordinary width for the time—ensuring that even the lower floors of buildings received natural light. The blocks were oriented NW-SE and SW-NE to ensure that all apartments received direct sunlight during the day.

The Original Vision of Greenery

In Cerdà’s original 1859 "Pla Cerdà," the blocks were not intended to be fully enclosed quadrangles. He envisioned buildings on only two or three sides of each block, with the interior remaining as a lush, public garden. This would have turned the Eixample into a "garden city," where urban density lived in harmony with nature.

II. Chronology: From Suffocation to Expansion

The transformation of Barcelona was born out of desperate necessity. To understand the Eixample, one must first understand the "Old City" that preceded it.

The Roman and Medieval Bottleneck (2nd Century BC – 1850s)

For nearly two millennia, Barcelona was contained within its Roman and later medieval defensive walls. By the mid-19th century, the city had reached a breaking point. While other European cities were expanding, the Spanish central government in Madrid refused to let Barcelona demolish its walls for military reasons.

By 1850, Barcelona was the most densely populated city in Europe. The Gothic Quarter, with its winding, narrow alleys, was a hotbed for disease. The population density was roughly 850 people per hectare (compared to about 350 in modern Paris). Cholera and yellow fever outbreaks were frequent and devastating, and life expectancy for the working class dropped to just 23 years.

1854: The Walls Fall

After years of petitioning, the Spanish government finally permitted the demolition of the walls in 1854. This "liberation" of the city sparked an urgent need for an expansion plan. The city council held a competition to design the new Barcelona.

1859: The Cerdà Controversy

The local competition was initially won by Antoni Rovira i Trias, who proposed a traditional radial plan centered on the old city. However, the central government in Madrid overrode the local decision and imposed the plan of Ildefons Cerdà, a civil engineer who was not even a trained architect. This sparked a decades-long resentment among the Barcelona elite toward Cerdà, though his plan would ultimately prove to be genius.

1860 – 1900: The Construction Boom

The first stone of the Eixample was laid in 1860. Over the following decades, the grid spread across the plain of Barcelona, eventually connecting the old city with surrounding villages like Gràcia and Sarrià. This era coincided with the Renaixença (Catalan Renaissance), leading to the construction of "Modernisme" masterpieces by architects like Antoni Gaudí, whose works—such as the Sagrada Família and Casa Milà—were built within Cerdà’s grid.

III. Supporting Data: The Logistics of the Grid

The "Pla Cerdà" was perhaps the first urban plan in history to be backed by extensive statistical research. Cerdà spent years studying how the working class lived, calculating the volume of air a human needs to breathe and the distance required for efficient transport.

• Block Dimensions: Each block (called a manzana) is exactly 113.3 meters by 113.3 meters, covering an area of 1.24 hectares.
• The Street Width: Cerdà mandated a standard street width of 20 meters (10 meters for the roadway and 5 meters for sidewalks on each side). Major thoroughfares, like Gran Via and Passeig de Gràcia, were designed to be 50 to 60 meters wide.
• The "Xamfrans" (Corners): The corners are truncated by 15 meters on each side, creating a 20-meter wide intersection area that allows for massive amounts of light and air to enter the "canyons" of the city.
• Population Density Goals: Cerdà originally intended for a density of 250 people per hectare, a massive reduction from the 850 in the Old City. However, due to later densification, the Eixample today houses approximately 350-400 people per hectare.

IV. Official Responses: Then and Now

The reception of the Eixample has evolved from bitter rejection to global adoration.

Historical Backlash

In the late 19th century, the Barcelona City Council and the local bourgeoisie hated Cerdà’s plan. They called it "monotonous" and "socialist" because it lacked a clear "center" and treated all blocks equally. They felt the grid was a "soulless" imposition from Madrid.

The Modern Scientific Consensus

Today, urban planners worldwide view Ildefons Cerdà as the "Father of Urbanism" (a term he actually coined: urbanización). Modern architects praise the flexibility of the grid. Unlike the rigid streets of New York or London, Barcelona’s octagonal intersections allow the city to breathe and adapt to new technologies.

The City Council’s "Superblock" (Superilles) Initiative

In the 21st century, the Barcelona City Council has launched a bold new chapter for the Eixample: the Superblock project. Under the leadership of former Mayor Ada Colau and current urban planners, the city is grouping nine blocks (3×3) together to restrict through-traffic to the perimeter.

The interior streets of these "Superblocks" are being reclaimed for pedestrians, playgrounds, and green spaces. This initiative is seen as the spiritual completion of Cerdà’s original vision—restoring the interior greenery and social spaces that were lost to 20th-century car culture.

V. Implications: The Legacy of a Utopian Grid

The implications of Barcelona’s city planning extend far beyond the borders of Catalonia. It serves as a living laboratory for how cities can balance density with livability.

1. Health as the Primary Metric

Cerdà proved that urban planning is, at its heart, a public health intervention. By prioritizing airflow and sunlight, he laid the groundwork for modern sanitary engineering. In the age of global pandemics, his focus on "ventilation" and "de-densification" remains more relevant than ever.

2. The Failure of Capitalism vs. The Vision of the Architect

The primary criticism of the Eixample today is the lack of the green courtyards Cerdà promised. Over 160 years, property developers—driven by profit—filled in the centers of the blocks and built higher than Cerdà permitted. This serves as a cautionary tale: even the best urban plan requires strict regulatory oversight to prevent the erosion of public goods for private gain.

3. A Model for Global "Smart Cities"

The grid’s mathematical regularity makes Barcelona uniquely suited for modern technology. From pneumatic waste collection systems to the efficient rollout of fiber optics and EV charging stations, the Eixample’s "modular" nature allows for upgrades with minimal disruption.

4. The Social Dimension

By creating a city without a single "exclusive" neighborhood, Cerdà’s grid fostered a sense of social cohesion. While certain streets like Passeig de Gràcia are high-end, the physical structure of the Eixample ensures that the wealthy and the middle class share the same sidewalks, the same sunlight, and the same geometric reality.

Conclusion

Barcelona’s "squares" are more than just a beautiful pattern on a postcard. They are the physical manifestation of a 19th-century dream to create a healthier, more equal society. While the city has struggled to maintain Cerdà’s original green vision, the enduring flexibility of his grid—now being repurposed for the "Superblock" era—proves that good design is timeless. Barcelona remains a testament to the idea that a city should not just be a place of commerce, but a machine for living well.
